Appearance

---

Appearance options on the Fog Of War World component. The available options depend on the selected Fog Appearance mode — see Fog Appearance for a conceptual overview.

Appearance Mode & Color

Property	Type	Default	Description

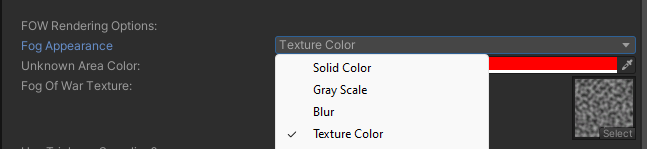

Fog Appearance	enum	Solid Color	The render style: Solid Color, Grayscale, Blur, Texture Sample, Outline, None, or Custom. Change at runtime with SetFowAppearance.
Fog Color	Color	(0.35, 0.35, 0.35)	The fog color. RGB sets the tint; alpha controls opacity. For Grayscale/Blur it acts as a color pre-multiplier.

Grayscale

Property	Type	Default	Description
Saturation Strength	float	0	How strongly color is removed in unexplored areas.

Blur

Property	Type	Default	Description
Blur Strength	float	1	Blur intensity.
Blur Distance Screen Percent Min	float (0–2)	0.1	Minimum screen-space blur offset.
Blur Distance Screen Percent Max	float (0–2)	1	Maximum screen-space blur offset.
Blur Samples	int	6	Number of blur samples (higher = smoother, more expensive).

Texture Sample

Property	Type	Default	Description
Fog Texture	Texture2D	—	Texture used to render the fog.
Use Triplanar	bool	true	Triplanar projection for the texture (3D). Disable for single-axis projection.
Fog Texture Tiling	Vector2	(1, 1)	Texture tiling scale.
Fog Scroll Speed	Vector2	(1, 1)	Texture scroll animation speed.

Outline

Property	Type	Default	Description
Outline Thickness	float	0.1	Thickness of the outline drawn at the fog boundary.

Pixelation

Property	Type	Default	Description
Pixelate Fog	bool	false	Quantizes the fog into pixel blocks.
World Space Pixelate	bool	false	Pixelate in world space instead of revealer-local space.
Pixel Density	float	2	Pixel size (higher = finer).
Round Revealer Position	bool	false	Snap revealers to the pixel grid.
Pixel Grid Offset	Vector2	(0, 0)	Offset of the pixel grid.

Dithering

Property	Type	Default	Description
Use Dithering	bool	false	Uses a dither pattern instead of true opacity.
Dither Size	float	20	Size of the dither pattern.

See Pixelation & Dithering for a conceptual overview of both.

Extra Options

Property	Type	Default	Description
Invert Fow Effect	bool	false	Inverts the fog mask (fogs the seen areas instead of the unseen areas).

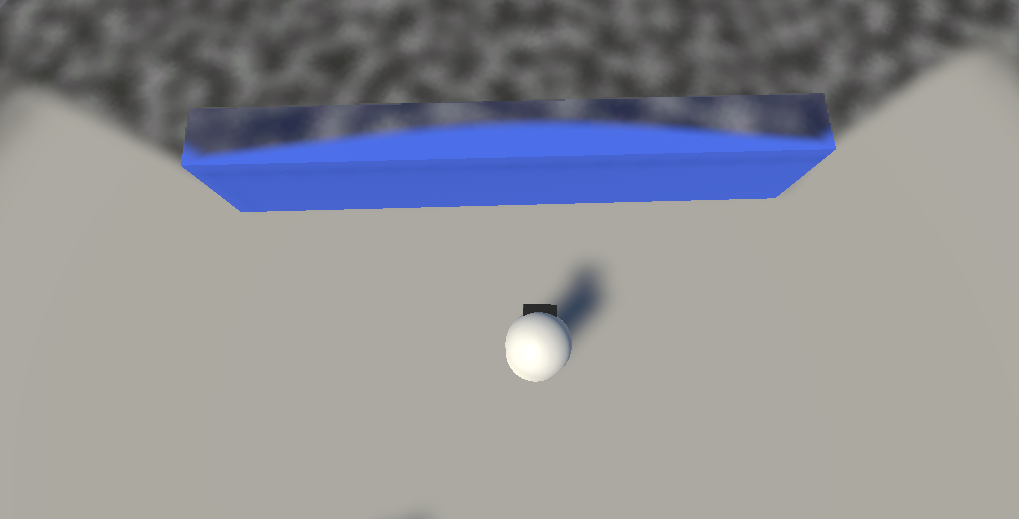

Add Slight Arc Leaking	bool	false	Adds a small amount of leaking to a revealer's vision in the shape of an arc. Works with soft fog. (Serialized as AllowBleeding.)
