Fog Of War World

The Fog Of War World component is the heart of the system. There should be exactly one in your scene, and it owns every global fog setting, drives revealer updates, and renders the fog.

Adding the Component

  1. Create a new empty GameObject in your scene. Name it Fog Of War (or similar).
  2. Add the Fog Of War World component to it.

Essential Settings

A few values must be set sensibly to avoid runtime errors. They are fixed-size because resizing GPU buffers at runtime is slow, so the buffers are pre-allocated from these limits.

Property Description
Max Possible Revealers The maximum number of revealers that can be active at once. The GPU buffer is sized from this value.
Max Possible Segments Per Revealer The maximum number of sight "segments" a single revealer can produce. A segment is one edge of the revealer's line-of-sight polygon. Setting this too low causes errors — leave it at a reasonable value. Enable Debug Mode on a revealer to visualize these segments.
Max Possible Hiders The maximum number of hiders. This will auto-resize if exceeded, but that causes a one-time hitch — size it appropriately up front.
Important

If a revealer needs more segments than Max Possible Segments Per Revealer allows, you will get a console error telling you to raise the value. See Debugging.

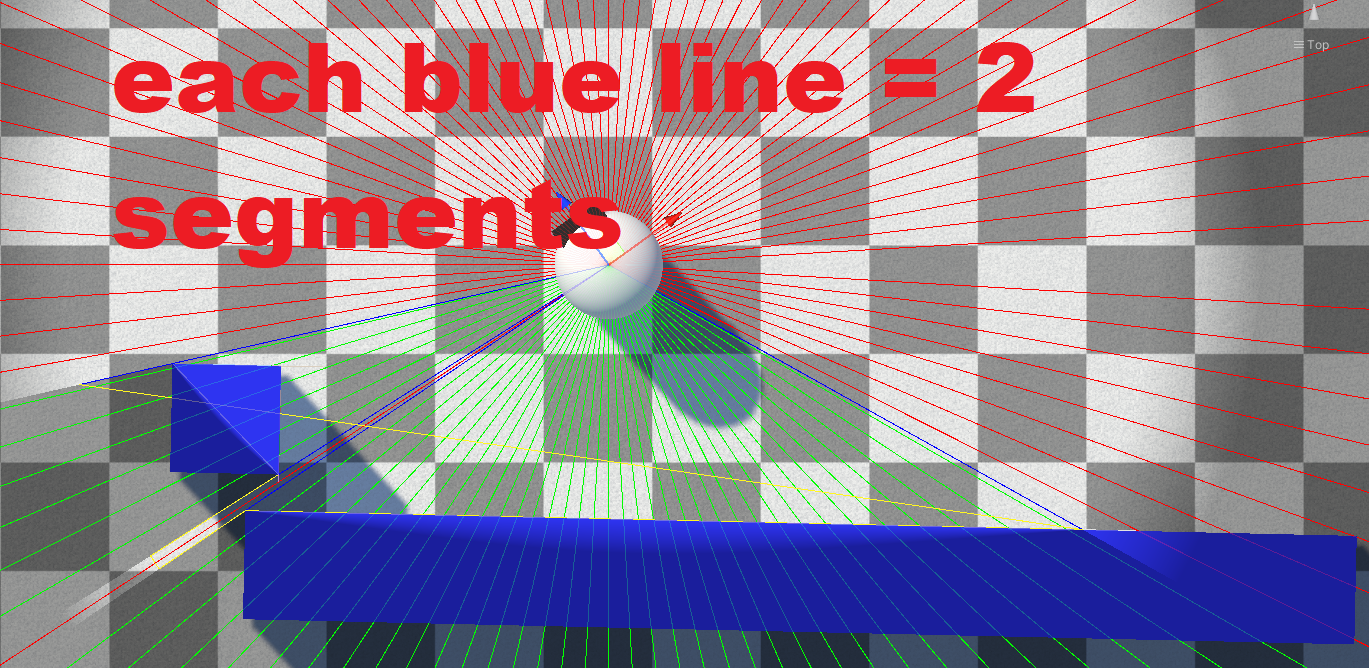

Each edge a revealer sees adds two segments — enabling Debug Mode on a revealer draws them:

Revealer sight segments

2D Projects

If your project is 2D, enable the Is 2D? checkbox. See 2D Setup for the full walkthrough.

Game Plane Orientation

For 3D projects, Game Plane Orientation controls which world plane the fog is calculated on:

  • XZ — the standard horizontal ground plane (top-down / most 3D games)
  • XY — a vertical plane
  • ZY — a vertical plane

Choosing a Fog Sample Mode

The Fog Sample Mode determines how fog is sampled and which features are available (regrow, minimap, etc.). This is an important early decision — see Fog Sample Modes.
