Revealers

Every setting on the Fog Of War Revealer 3D / Fog Of War Revealer 2D components, grouped by inspector section. For how to add a revealer, see Getting Started: Revealers.

Vision Range Settings

Property	Type	Default	Description
View Radius	float	15	How far the revealer can see.
Soften Distance	float	3	Softens the outer edge of the view radius (soft fog).
Inner Soften Angle	float (0–60)	5	Softens the inner edge of the view cone.
Unobscured Radius	float	1	A radius that is always lit, even outside the view angle or behind obstacles.
Unobscured Soften Distance	float	0.25	Softens the edge of the unobscured radius.
Vision Height	float	3	How high the revealer can see (3D).
Vision Height Soften Distance	float	1.5	Softens the top edge of the vision height.

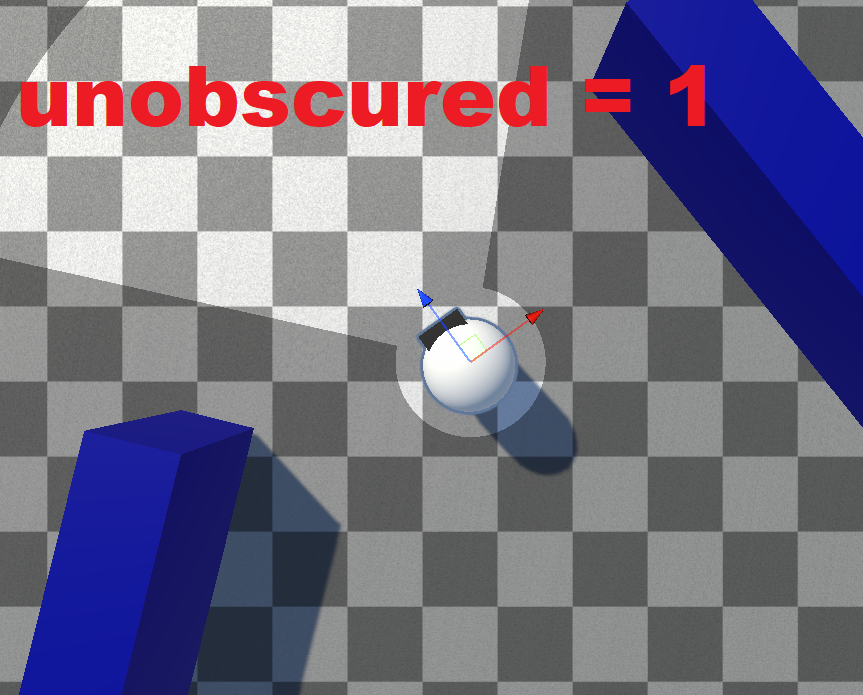

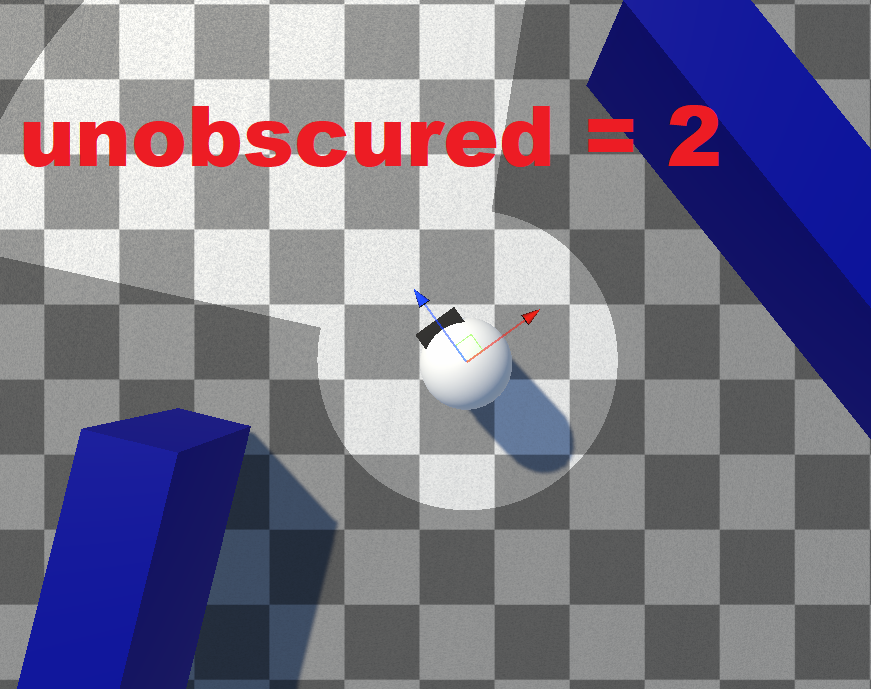

The Unobscured Radius is always lit, even behind obstacles:

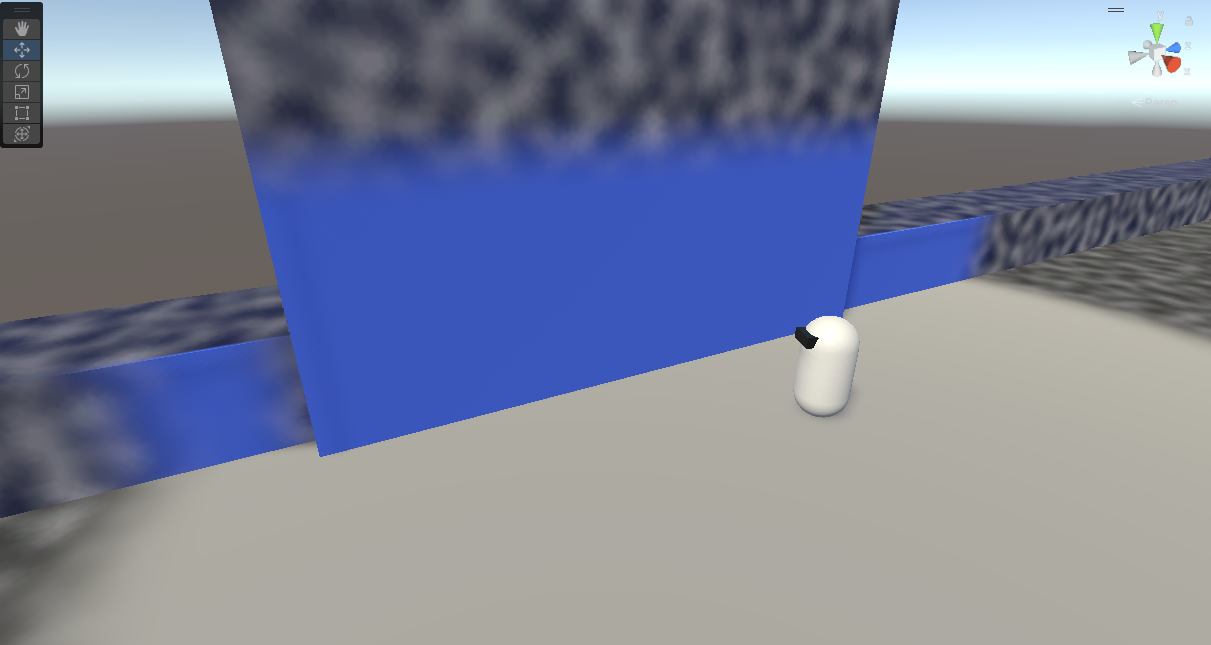

Revealer vision height Vision Height

Customization Settings

Property	Type	Default	Description
View Angle	float (1–360)	360	The cone angle the revealer sees within.
Opacity	float (0–1)	1	How strongly this revealer clears the fog.
Eye Offset	float	0	Height above the object that sight is calculated from.
Shader Eye Offset	float	0	A shader-only offset for the height at which vision height is evaluated.
Start Revealer As Static	bool	false	Spawns the revealer as static (calculates once, then stops).

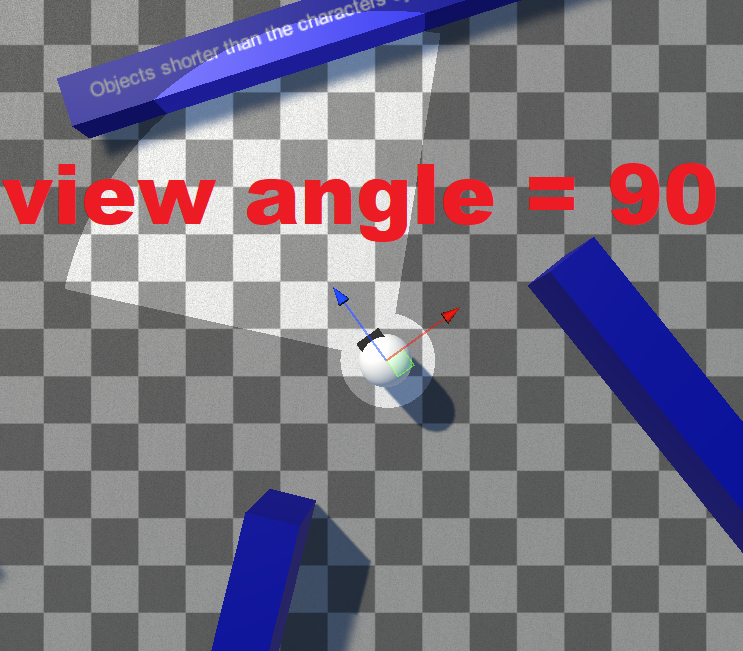

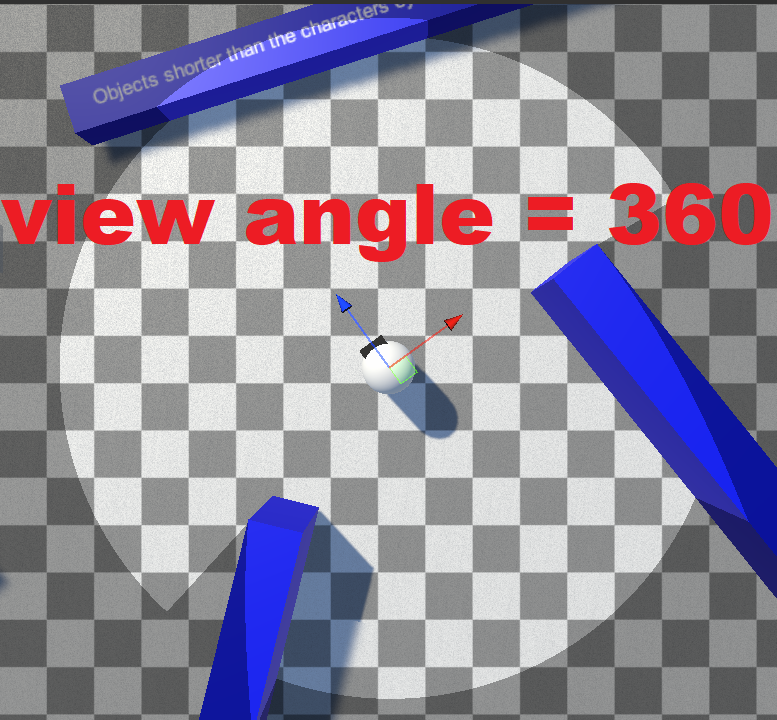

View Angle sets the width of the vision cone:

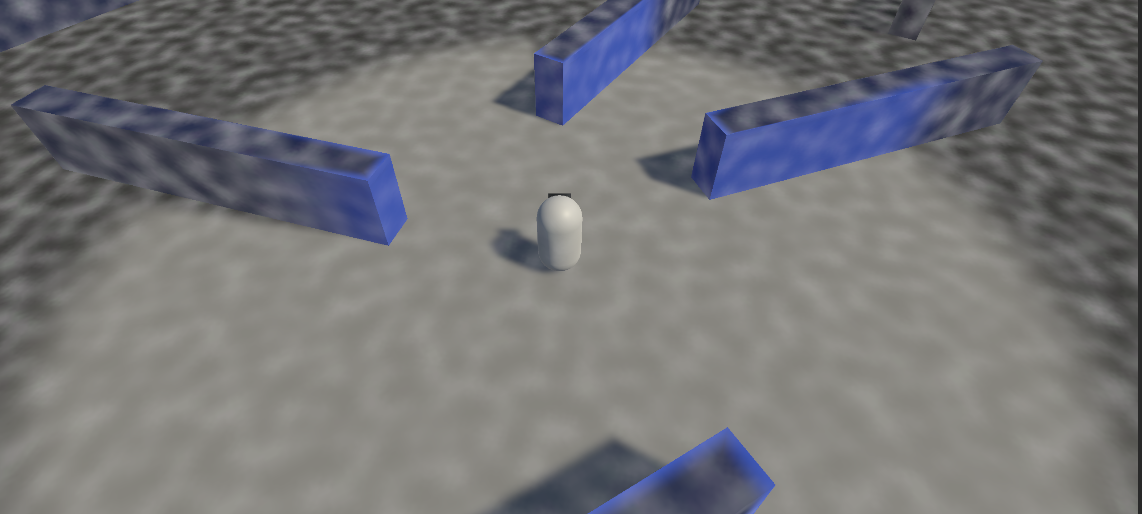

Revealer opacity = 0.5

Hider Settings

Property	Type	Default	Description
Reveal Hider In Fade Out Zone Percentage	float (0–1)	0.5	How deep into the soften zone a hider must be to count as revealed (e.g. 0.5 = at least 50% opacity).
Max Hiders Sampled Per Frame	int	50	Maximum hiders this revealer tests per frame.
Set Hider Ray Origin To Hiders Height	bool	false	Starts the hider visibility ray at the hider's height.
Set Hider Ray Destination To Revealers Height	bool	true	Ends the hider visibility ray at this revealer's height.

Occlusion Settings

Property	Type	Default	Description
Use Occlusion	bool	true	Whether obstacles block vision. Disable for very cheap, non-blocking revealers.
Add Corners	bool	true	Adds object corners as sight segments. Disabling skips "inside" edges, allowing bleeding between visible corners.
Obstacle Mask	LayerMask	—	The collider layers that block vision.
Occlusion Quality	enum	High Resolution	Quality preset for raycast accuracy. See Occlusion Quality.

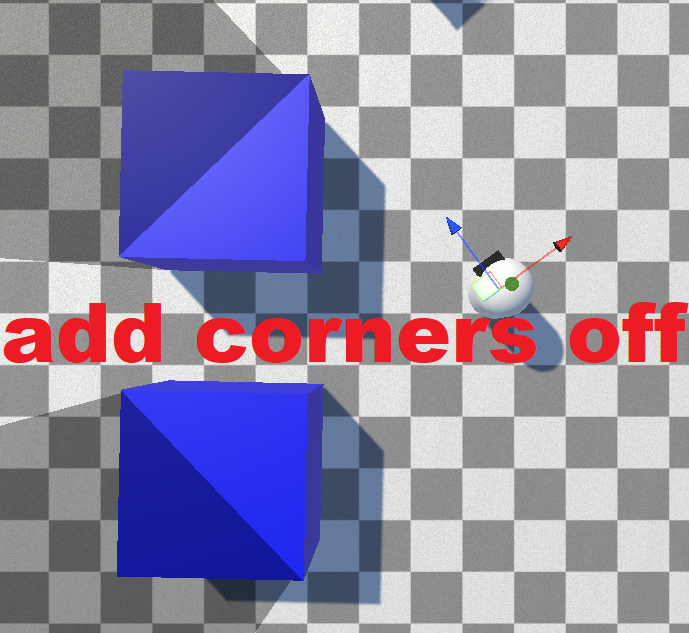

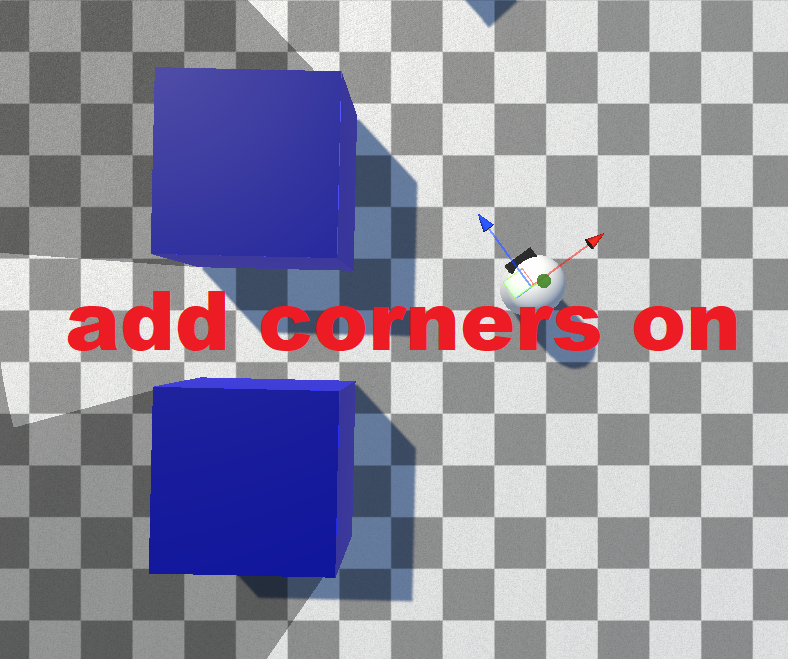

Add Corners controls whether object corners are added as sight segments — disabling it allows vision to bleed between an object's visible corners:

Setting Occlusion Quality to Custom exposes the underlying raycast tuning fields (Raycast Resolution, Num Extra Iterations, Resolve Edge, and more) — documented in Occlusion Quality.
